3.1 CNN from Stratch

A simple guide to what CNNs are, how they work, and how to build one from scratch in Python.

Created Date: 2025-05-11

There’s been a lot of buzz about Convolution Neural Networks (CNNs) in the past few years, especially because of how they’ve revolutionized the field of Computer Vision. In this post, we’ll build on a basic background knowledge of neural networks and explore what CNNs are, understand how they work, and build a real one from scratch (using only NumPy) in Python.

This post assumes only a basic knowledge of neural networks. Section 1.7 Neural Network from Scratch covers everything you’ll need to know, so you might want to read that first.

Ready? Let’s jump in.

3.1.1 Motivation

A classic use case of CNNs is to perform image classification, e.g. looking at an image of a pet and deciding whether it’s a cat or a dog. It’s a seemingly simple task - why not just use a normal Neural Network?

Good question.

Reason 1: Images are Big

Images used for Computer Vision problems nowadays are often \(224 \times 224\) or larger. Imagine building a neural network to process \(224 \times 224\) color images: including the 3 color channels (RGB) in the image, that comes out to \(224 \times 224 \times 3 = 150528\) input features!

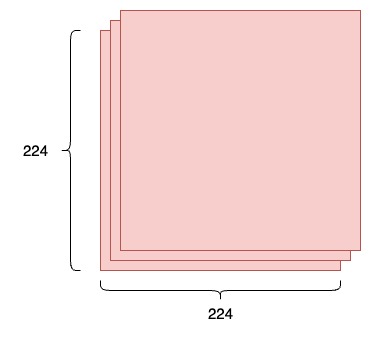

Figure 1 - Image of Size \(224 \times 224 \times 3\)

A typical hidden layer in such a network might have 1024 nodes, so we'd have to train \(150528 \times 1024 = 150+\) million weights for the first layer alone. Our network would be huge and nearly impossible to train.

It’s not like we need that many weights, either. The nice thing about images is that we know pixels are most useful in the context of their neighbors. Objects in images are made up of small, localized features, like the circular iris of an eye or the square corner of a piece of paper. Doesn’t it seem wasteful for every node in the first hidden layer to look at every pixel?

Reason 2: Positions can change

If you trained a network to detect dogs, you’d want it to be able to a detect a dog regardless of where it appears in the image. Imagine training a network that works well on a certain dog image, but then feeding it a slightly shifted version of the same image. The dog would not activate the same neurons, so the network would react completely differently!

We’ll see soon how a CNN can help us mitigate these problems.

3.1.2 Dataset

In this post, we’ll tackle the "Hello, World!" of Computer Vision: the MNIST handwritten digit classification problem. It’s simple: given an image, classify it as a digit.

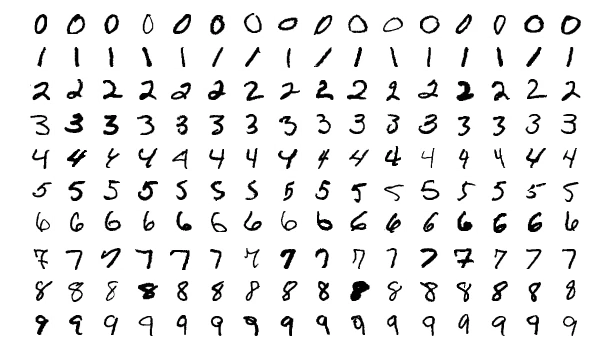

Figure 2 - Sample Images from the MNIST Dataset

Each image in the MNIST dataset is \(28 \times 28\) and contains a centered, grayscale digit.

Truth be told, a normal neural network would actually work just fine for this problem. You could treat each image as a \(28 \times 28 = 784\) - dimensional vector, feed that to a 784-dim input layer, stack a few hidden layers, and finish with an output layer of 10 nodes, 1 for each digit.

This would only work because the MNIST dataset contains small images that are centered, so we wouldn’t run into the aforementioned issues of size or shifting. Keep in mind throughout the course of this post, however, that most real-world image classification problems aren’t this easy.

Enough buildup. Let’s get into CNNs!

3.1.3 Convolutions

What are Convolutional Neural Networks?

They’re basically just neural networks that use Convolutional layers, a.k.a. Conv layers, which are based on the mathematical operation of convolution. Conv layers consist of a set of filters, which you can think of as just 2d matrices of numbers. Here’s an example \(3 \times 3\) filter:

Figure 3 - A \(3 \times 3\) filter

We can use an input image and a filter to produce an output image by convolving the filter with the input image. This consists of:

1. Overlaying the filter on top of the image at some location.

2. Performing element-wise multiplication between the values in the filter and their corresponding values in the image.

3. Summing up all the element-wise products. This sum is the output value for the destination pixel in the output image.

4. Repeating for all locations.

Side Note: We (along with many CNN implementations) are technically actually using cross-correlation instead of convolution here, but they do almost the same thing. I won’t go into the difference in this post because it’s not that important, but feel free to look this up if you’re curious.

That 4-step description was a little abstract, so let’s do an example. Consider this tiny \(4 \times 4\) grayscale image and this \(3 \times 3\) filter:

Figure 4 - A \(4 \times 4\) image

The numbers in the image represent pixel intensities, where 0 is black and 255 is white. We’ll convolve the input image and the filter to produce a 2x2 output image:

Figure 5 - A \(2 \times 2\) output image

To start, lets overlay our filter in the top left corner of the image:

Figure 6 - Overlay the filter on top of the image

Next, we perform element-wise multiplication between the overlapping image values and filter values. Here are the results, starting from the top left corner and going right, then down. We sum up all the results, hat’s easy enough:

Finally, we place our result in the destination pixel of our output image. Since our filter is overlayed in the top left corner of the input image, our destination pixel is the top left pixel of the output image. We do the same thing to generate the rest of the output image:

Figure 7 - Final Output

3.1.3.1 How is This Useful?

Let’s zoom out for a second and see this at a higher level. What does convolving an image with a filter do? We can start by using the example \(3 \times 3\) filter we’ve been using, which is commonly known as the vertical Sobel filter:

Figure 8 - Standard Test Image

File sobel_filter.py is an example of what the vertical Sobel filter does:

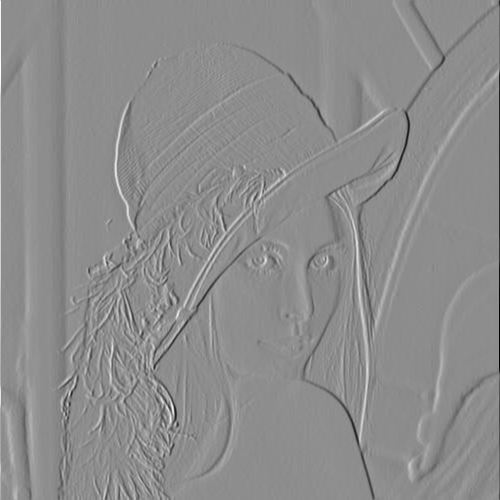

Figure 9 - An Image Convolved with the Vertical Sobel Filter

Similarly, there’s also a horizontal Sobel filter:

Figure 10 - The Horizontal Sobel Filter

See what’s happening? Sobel filters are edge-detectors. The vertical Sobel filter detects vertical edges, and the horizontal Sobel filter detects horizontal edges. The output images are now easily interpreted: a bright pixel (one that has a high value) in the output image indicates that there’s a strong edge around there in the original image.

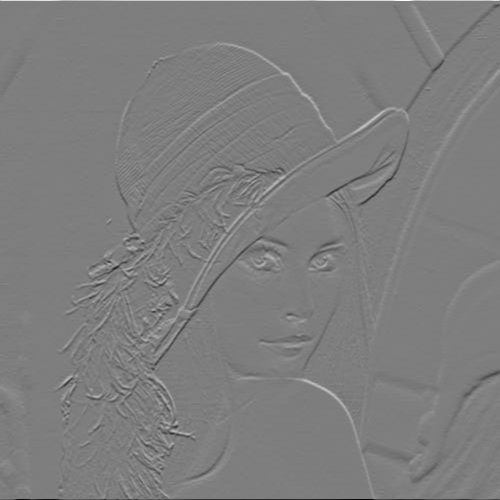

Figure 11 - An Image Convolved with the Horizontal Sobel Filter

Can you see why an edge-detected image might be more useful than the raw image? Think back to our MNIST handwritten digit classification problem for a second. A CNN trained on MNIST might look for the digit 1, for example, by using an edge-detection filter and checking for two prominent vertical edges near the center of the image. In general, convolution helps us look for specific localized image features (like edges) that we can use later in the network.

3.1.3.2 Padding

Remember convolving a \(4 \times 4\) input image with a \(3 \times 3\) filter earlier to produce a \(2 \times 2\) output image? Often times, we’d prefer to have the output image be the same size as the input image. To do this, we add zeros around the image so we can overlay the filter in more places. A \(3 \times 3\) filter requires 1 pixel of padding:

Figure 12 - A \(4 \times 4\) Input Convolved with a \(3 \times 3\) Filter

This is called "same" padding, since the input and output have the same dimensions. Not using any padding, which is what we’ve been doing and will continue to do for this post, is sometimes referred to as "valid" padding.

3.1.3.3 Conv Layers

Now that we know how image convolution works and why it’s useful, let’s see how it’s actually used in CNNs. As mentioned before, CNNs include conv layers that use a set of filters to turn input images into output images. A conv layer’s primary parameter is the number of filters it has.

For our MNIST CNN, we'll use a small conv layer with 8 filters as the initial layer in our network. This means it’ll turn the \(28 \times 28\) input image into a \(26 \times 26 \times 8\) output volume:

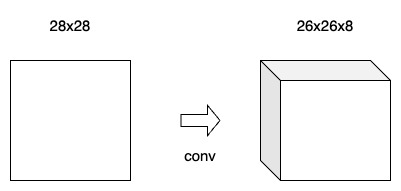

Figure 13 - Simple Conv Layer

Reminder: The output is \(26 \times 26 \times 8\) and not \(28 \times 28 \times 8\) because we’re using valid padding, which decreases the input’s width and height by 2.

Each of the 8 filters in the conv layer produces a \(26 \times 26\) output, so stacked together they make up a \(26 \times 26 \times 8\) volume. All of this happens because of \(3 \times 3\) (filter size) \(\times\) 8 (number of filters) = only 72 weights!

3.1.3.4 Implementing Convolution

Time to put what we’ve learned into code! We’ll implement a conv layer’s feedforward portion, which takes care of convolving filters with an input image to produce an output volume. For simplicity, we’ll assume filters are always 3x3 (which is not true - 5x5 and 7x7 filters are also very common).

File conv.py implementing a conv layer class:

class Conv3x3:
    # A Convolution layer using 3x3 filters.
    def __init__(self, num_filters):
        self.num_filters = num_filters

        # filters is a 3d array with dimensions (num_filters, 3, 3)
        # We divide by 9 to reduce the variance of our initial values
        self.filters = numpy.random.randn(num_filters, 3, 3) / 9

The Conv3x3 class takes only one argument: the number of filters. In the constructor, we store the number of filters and initialize a random filters array using NumPy’s random.randn() method.

Note: Diving by 9 during the initialization is more important than you may think. If the initial values are too large or too small, training the network will be ineffective.

Next, the actual convolution:

class Conv3x3:
    # ...

    def iterate_regions(self, image):
        '''
        Generates all possible 3x3 image regions using valid padding.
        - image is a 2d numpy array
        '''
        h, w = image.shape

        for i in range(h - 2):
            for j in range(w - 2):
                im_region = image[i:(i+3), j:(j+3)]
                yield im_region, i, j

    def forward(self, input):
        '''
        Performs a forward pass of the conv layer using the given input.
        Returns a 3d numpy array with dimensions (h, w, num_filters).
        - input is a 2d numpy array
        '''
        h, w = input.shape
        output = numpy.zeros((h - 2, w - 2, self.num_filters))

        for im_region, i, j in self.iterate_regions(input):
            output[i, j] = numpy.sum(im_region * self.filters, axis=(1, 2))

        return output

iterate_regions() is a helper generator method that yields all valid \(3 \times 3\) image regions for us. This will be useful for implementing the backwards portion of this class later on.

The line of code that actually performs the convolutions is highlighted above. Let’s break it down:

• We have im_region, a \(3 \times 3\) array containing the relevant image region.

• We have self.fitlers, a 3d array.

• We do im_region * self.filters, which uses NumPy's broadcasting feature to element-wise multiply the two arrays. The result is a 3d array with the same dimension as self.filters.

• We numpy.sum() the result of the previous step using axis=(1, 2), which produces a 1d array of length num_filters where each element contains the convolution result for the corresponding filter.

• We assign the result to output[i, j], which contains convolution results for pixel (i, j) in the output.

The sequence above is performed for each pixel in the output until we obtain our final output volume! Let’s give our code a test run:

(x_train, y_train), (x_test, y_test) = mnist.load()

conv = Conv3x3(8)
output = conv.forward(x_train[0])
assert output.shape == (26, 26, 8)

Looks good so far.

3.1.4 Pooling

Neighboring pixels in images tend to have similar values, so conv layers will typically also produce similar values for neighboring pixels in outputs. As a result, much of the information contained in a conv layer’s output is redundant.

For example, if we use an edge-detecting filter and find a strong edge at a certain location, chances are that we’ll also find relatively strong edges at locations 1 pixel shifted from the original one. However, these are all the same edge! We’re not finding anything new.

Pooling layers solve this problem. All they do is reduce the size of the input it’s given by (you guessed it) pooling values together in the input. The pooling is usually done by a simple operation like max, min, or average. Here’s an example of a Max Pooling layer with a pooling size of 2:

Figure 14 - Max Pooling

To perform max pooling, we traverse the input image in 2x2 blocks (because pool size = 2) and put the max value into the output image at the corresponding pixel. That’s it!

Pooling divides the input’s width and height by the pool size. For our MNIST CNN, we’ll place a Max Pooling layer with a pool size of 2 right after our initial conv layer. The pooling layer will transform a 26x26x8 input into a 13x13x8 output:

Figure 15 - Max Pooling Layer

File max_pool.py implement a MaxPool2 class with the same methods as our conv class from the previous section:

class MaxPool2:
    # A Max Pooling layer with a 2x2 filter.

    def iterate_regions(self, image):
        '''
        Generates non-overlapping 2x2 image regions to pool over.
        - image is a 2d numpy array
        '''
        h, w, _ = image.shape
        new_h = h // 2
        new_w = w // 2

        for i in range(new_h):
            for j in range(new_w):
                im_region = image[(i * 2):(i * 2 + 2), (j * 2):(j * 2 + 2)]
                yield im_region, i, j

    def forward(self, input):
        '''
        Performs a forward pass of the maxpool layer using the given input.
        Returns a 3d numpy array with dimensions (h / 2, w / 2, num_filters).
        - input is a 3d numpy array with dimensions (h, w, num_filters)
        '''
        h, w, num_filters = input.shape
        output = numpy.zeros((h // 2, w // 2, num_filters))

        for im_region, i, j in self.iterate_regions(input):
            output[i, j] = numpy.amax(im_region, axis=(0, 1))

        return output

This class works similarly to the Conv3x3 class we implemented previously. The critical line is again highlighted: to find the max from a given image region, we use numpy.amax(), NumPy's array max method. We set axis=(0, 1) because we only want to maximize over the first two dimensions, height and width, and not the third num_filters.

Let’s test it:

(x_train, y_train), (x_test, y_test) = mnist.load()

conv = Conv3x3(8)
pool = MaxPool2()

output = conv.forward(x_train[0])
output = pool.forward(output)
assert output.shape == (13, 13, 8)

Our MNIST CNN is starting to come together!

3.1.5 Softmax

To complete our CNN, we need to give it the ability to actually make predictions. We’ll do that by using the standard final layer for a multiclass classification problem: the Softmax layer, a fully-connected (dense) layer that uses the softmax function as its activation.

3.1.5.1 Usage

We’ll use a softmax layer with 10 nodes, one representing each digit, as the final layer in our CNN. Each node in the layer will be connected to every input. After the softmax transformation is applied, the digit represented by the node with the highest probability will be the output of the CNN!

Figure 16 - Softmax Layer

3.1.5.2 Cross-Entropy Loss

You might have just thought to yourself, why bother transforming the outputs into probabilities? Won’t the highest output value always have the highest probability? If you did, you’re absolutely right. We don’t actually need to use softmax to predict a digit - we could just pick the digit with the highest output from the network!

What softmax really does is help us quantify how sure we are of our prediction, which is useful when training and evaluating our CNN. More specifically, using softmax lets us use cross-entropy loss, which takes into account how sure we are of each prediction. Here’s how we calculate cross-entropy loss:

where \(c\) is the correct class (in our case, the correct digit), \(p_c\) is the predicted probability for class \(c\), and \(ln\) is the natural log. As always, a lower loss is better. For example, in the best case, we’d have:

In a more realistic case, we might have:

We’ll be seeing cross-entropy loss again later on in this post, so keep it in mind!

3.1.5.3 Implementing Softmax

You know the drill by now - File softmax.py implement a Softmax layer class:

class Softmax:
    # A standard fully-connected layer with softmax activation.

    def __init__(self, input_len, nodes):
        # We divide by input_len to reduce the variance of our initial values.
        self.weights = numpy.random.randn(input_len, nodes) / input_len
        self.bias = numpy.zeros(nodes)

    def forward(self, input):
        '''
        Performs a forward pass of the softmax layer using the given input.
        Returns a 1d numpy array containing the respective probability values.
        - input can be any array with any dimensions.
        '''
        input = input.flatten()
        input_len, nodes = self.weights.shape

        totals = numpy.dot(input, self.weights) + self.bias
        exp = numpy.exp(totals)
        return exp / numpy.sum(exp, axis=0)

There’s nothing too complicated here. A few highlights:

• flatten() the input to make it easier to work with, since we no longer need its shape.

• numpy.dot() multiplies input and self.weights element-wise and then sums the results.

• numpy.exp() calculates the exponentials used for Softmax.

We’ve now completed the entire forward pass of our CNN! File cnn_forward.py putting it together:

(x_train, y_train), (x_test, y_test) = mnist.load()

conv = Conv3x3(8)                   # 28x28x1 -> 26x26x8
pool = MaxPool2()                   # 26x26x8 -> 13x13x8
softmax = Softmax(13 * 13 * 8, 10)  # 13x13x8 -> 10

def forward(input, label):
    '''
    Completes a forward pass of the CNN and calculates the accuracy and
    cross-entropy loss.
    - image is a 2d numpy array
    - label is a digit
    '''

    # We transform the image from [0, 255] to [-0.5, 0.5] to make it easier
    # to work with. This is standard practice.
    out = conv.forward(input / 255 - 0.5)
    out = pool.forward(out)
    out = softmax.forward(out)

    # Calculate cross-entropy loss and accuracy. np.log() is the natural log.
    loss = -numpy.log(out[label])
    acc = 1 if numpy.argmax(out) == label else 0

    return out, loss, acc

loss = 0
num_correct = 0

for i, (image, label) in enumerate(zip(x_test[:400], y_test[:400])):
    out, l, acc = forward(image, label)
    loss += l
    num_correct += acc

    if (i + 1) % 100 == 0:
        print('Step' + str(i + 1) + ': loss = ' + str(round(loss / 100, 4)) +
                ', accuracy = ' + str(num_correct / 100))
        loss = 0
        num_correct = 0

Running cnn_forward.py gives us output similar to this:

Step100: loss = 2.302, accuracy = 0.12
Step200: loss = 2.3025, accuracy = 0.09
Step300: loss = 2.302, accuracy = 0.14
Step400: loss = 2.3025, accuracy = 0.12

This makes sense: with random weight initialization, you’d expect the CNN to be only as good as random guessing. Random guessing would yield 10% accuracy (since there are 10 classes) and a cross-entropy loss of \(−ln(0.1) \approx 2.302\), which is what we get!

3.1.6 Training Overview

Training a neural network typically consists of two phases:

1. A forward phase, where the input is passed completely through the network.

2. A backward phase, where gradients are backpropagated (backprop) and weights are updated.

We’ll follow this pattern to train our CNN. There are also two major implementation-specific ideas we’ll use:

• During the forward phase, each layer will cache any data (like inputs, intermediate values, etc) it’ll need for the backward phase. This means that any backward phase must be preceded by a corresponding forward phase.

• During the backward phase, each layer will receive a gradient and also return a gradient. It will receive the gradient of loss with respect to its outputs \(\frac{\partial L}{\partial out}\) and return the gradient of loss with respect to its inputs \(\frac{\partial L}{\partial in}\).

These two ideas will help keep our training implementation clean and organized. The best way to see why is probably by looking at code. Training our CNN will ultimately look something like this:

# Feed forward
out = conv.forward((image / 255) - 0.5)
out = pool.forward(out)
out = softmax.forward(out)

# Calculate initial gradient
gradient = np.zeros(10)

# Backprop
gradient = softmax.backprop(gradient)
gradient = pool.backprop(gradient)
gradient = conv.backprop(gradient)

See how nice and clean that looks? Now imagine building a network with 50 layers instead of 3 - it’s even more valuable then to have good systems in place.

3.1.7 Backprop: Softmax

We’ll start our way from the end and work our way towards the beginning, since that’s how backprop works. First, recall the cross-entropy loss:

where \(p_c\) is the predicted probability for the correct class \(c\) (in other words, what digit our current image actually is).

The first thing we need to calculate is the input to the Softmax layer’s backward phase, \(\frac{\partial L}{\partial {out}_s}\), where \({out}_s\) s the output from the Softmax layer: a vector of 10 probabilities. This is pretty easy, since only \(p_i\) shows up in the loss equation:

That’s our initial gradient you saw referenced above:

# Calculate initial gradient
gradient = np.zeros(10)
gradient[label] = -1 / out[label]

We’re almost ready to implement our first backward phase - we just need to first perform the forward phase caching we discussed earlier:

class Softmax:
    # ...
    def forward(self, input):
        self.last_input_shape = input.shape
        input = input.flatten()
        self.last_input = input

        totals = numpy.dot(input, self.weights) + self.bias
        self.last_totals = totals

        exp = numpy.exp(totals)
        return exp / numpy.sum(exp, axis=0)

We cache 3 things here that will be useful for implementing the backward phase:

• The input’s shape before we flatten it.

• The input after we flatten it.

• The totals, which are the values passed in to the softmax activation.

With that out of the way, we can start deriving the gradients for the backprop phase. We’ve already derived the input to the Softmax backward phase: \(\frac{\partial L}{\partial {out}_s}\). One fact we can use about \(\frac{\partial L}{\partial {out}_s}\) is that it’s only nonzero for \(c\), the correct class. That means that we can ignore everything but \({out}_s(c)!\)

First, let’s calculate the gradient of \({out}_s(c)\) with respect to the totals (the values passed in to the softmax activation). Let \(t_i\) be the total for class \(i\). Then we can write \({out}_s(c)\) as:

Where \(S = \sum_i e^{t_i}\)

Now, consider some class \(k\) such that \(k \ne c\), and use chain rule to derive:

Remember, that was assuming \(k \ne c\). Now let’s do the derivation for \(c\), this time using Quotient Rule (because we have an \(e^{t_c}\) in the numerator of \(out_s(c)\)):

For a detailed derivation, please refer to the Softmax section. That was the hardest bit of calculus in this entire post - it only gets easier from here! Let’s start implementing this:

class Softmax:
    # ...
    def backprop(self, dl_dout, learn_rate):
        '''
        Performs a backward pass of the softmax layer.
        Returns the loss gradient for this layer's inputs.
        - dl_dout is the loss gradient for this layer's outputs.
        '''
        # We know only 1 element of dl_dout will be nonzero.
        for i, gradient in enumerate(dl_dout):
            t_exp = numpy.exp(self.last_totals)

            S = numpy.sum(t_exp)

            # Gradient of the softmax  function.
            dout_dt = -t_exp[i] * t_exp / (S * S)
            dout_dt[i] += t_exp[i] * (S - t_exp[i]) / (S * S)

Remember how \(\frac{\partial L}{\partial {out}_s}\) is only nonzero for the correct class, \(c\)? We start by looking for \(c\) by looking for a nonzero gradient in dl_dout. Once we find that, we calculate the gradient \(\frac{\partial {out}_s(i)}{\partial t}\) (dout_dtotals) using the result we derived above:

Let’s keep going. We ultimately want the gradients of loss against weights, biases, and input:

1. We’ll use the weights gradient \(\frac{\partial L}{\partial w}\) to update our layer's weights.

2. We’ll use the biases gradient \(\frac{\partial L}{\partial b}\) to update our layer’s biases.

3. We’ll return the input gradient \(\frac{\partial L}{\partial input}\) from our backprop() method so the next layer can use it. This is the return gradient we talked about in the Training Overview section!

To calculate those 3 loss gradients, we first need to derive 3 more results: the gradients of totals against weights, biases, and input. The relevant equation here is:

Using chain rule, putting this into code is a little less straightforward:

class Softmax:
    def backprop(self, dl_dout):
        for i, gradient in enumerate(dl_dout):
            # ...
            # Gradients of totals against weights and bias.
            dt_dw = self.last_input
            dt_db = 1
            dt_dinputs = self.weights
            # Graidents of the loss against totals.
            dl_dt = gradient * dout_dt
            # Gradients of loss against weights and bias.
            dl_dw = dt_dw[numpy.newaxis].T @ dl_dt[numpy.newaxis]
            dl_db = dl_dt * dt_db
            dl_dinputs = dt_dinputs @ dl_dt

First, we pre-calculate dl_dt since we’ll use it several times. Then, we calculate each gradient:

• dl_dw: We need 2d arrays to do matrix multiplication, but dt_dw and dl_dt are 1d arrays. numpy.newaxis lets us easily create a new axis of length one, so we end up multiplying matrices with dimensions \((input_len, 1)\) and \((1, nodes)\). Thus, the final result for dl_dw will have shape \((input_len, nodes)\), which is the same as self.weights!

• dl_db: This one straightforward, since dt_db is 1.

• dl_dinputs: We multiply matrices with dimensions \((input_len, nodes)\) and \((nodes, 1)\) to get a result with length input_len.

With all the gradients computed, all that’s left is to actually train the Softmax layer! We’ll update the weights and bias using Stochastic Gradient Descent (SGD) and then return dl_dinputs:

class Softmax:
    def backprop(self, dl_dout, learn_rate):
        for i, gradient in enumerate(dl_dout):
            # ...
            # Update weights and bias.
            self.weights -= learn_rate * dl_dw
            self.bias -= learn_rate * dl_db

        return dl_dinputs.reshape(self.last_input_shape)

Notice that we added a learn_rate parameter that controls how fast we update our weights. Also, we have to reshape() before returning dl_dinputs because we flattened the input during our forward pass:

Reshaping to last_input_shape ensures that this layer returns gradients for its input in the same format that the input was originally given to it.

We’ve finished our first backprop implementation! Let’s quickly test it to see if it’s any good. We’ll start implementing a train() method in our cnn_training.py file:

def train(iamge, label, lr=0.005):
    '''
    Completes a full training step on the given image and label.
    Returns the cross-entropy loss and accuracy.
    - image is a 2d numpy array
    - label is a digit
    - lr is the learning rate
    '''
    out, loss, acc = forward(iamge, label)

    # Calculate initial gradient.
    gradient = numpy.zeros(10)
    gradient[label] = -1 / out[label]

    gradient = softmax.backprop(gradient, lr)
    # gradient = pool.backprop(gradient)
    # gradient = conv.backprop(gradient, lr)

    return loss, acc

Running this gives results similar to:

Step 100: loss = 2.2088, accuracy = 0.22
Step 200: loss = 2.0672, accuracy = 0.38
Step 300: loss = 1.8912, accuracy = 0.56
Step 400: loss = 1.7211, accuracy = 0.68
Step 500: loss = 1.6354, accuracy = 0.68
Step 600: loss = 1.6632, accuracy = 0.59
Step 700: loss = 1.5719, accuracy = 0.69
Step 800: loss = 1.4217, accuracy = 0.7
Step 900: loss = 1.3351, accuracy = 0.77
Step 1000: loss = 1.3272, accuracy = 0.75

The loss is going down and the accuracy is going up - our CNN is already learning!

3.1.8 Backprop: Max Pooling

A Max Pooling layer can’t be trained because it doesn’t actually have any weights, but we still need to implement a backprop() method for it to calculate gradients. We’ll start by adding forward phase caching again. All we need to cache this time is the input:

class MaxPool2:
    # ...
    def forward(self, input):
        self.last_input = input

During the forward pass, the Max Pooling layer takes an input volume and halves its width and height dimensions by picking the max values over 2x2 blocks. The backward pass does the opposite: we’ll double the width and height of the loss gradient by assigning each gradient value to where the original max value was in its corresponding 2x2 block.

Each gradient value is assigned to where the original max value was, and every other value is zero.

Why does the backward phase for a max pooling layer work like this? Think about what \(\frac{\partial L}{\partial inputs}\) intuitively should be. An input pixel that isn’t the max value in its 2x2 block would have zero marginal effect on the loss, because changing that value slightly wouldn’t change the output at all!

In other words, \(\frac{\partial L}{\partial inputs} = 0\) for non-max pixels. On the other hand, an input pixel that is the max value would have its value passed through to the output, so \(\frac{\partial output}{\partial input} = 1\) meaning \(\frac{\partial L}{\partial input} = \frac{\partial L}{\partial output}\).

We can implement this pretty quickly using the iterate_regions() helper method:

class MaxPool2:
    # ...
    def backprop(self, dl_dout):
    '''
    Performs a backward pass of the maxpool layer.
    Returns the loss gradient for this layer's inputs.
    - dl_dout is the loss gradient for this layer's outputs.
    '''
    dl_dinput = numpy.zeros(self.last_input.shape)
    for im_region, i, j in self.iterate_regions(self.last_input):
        h, w, f = im_region.shape
        amax = numpy.amax(im_region, axis=(0, 1))

        for i2 in range(h):
            for j2 in range(w):
                for f2 in range(f):
                    # If this pixel was the max value, copy the gradient to it.
                    if im_region[i2, j2, f2] == amax[f2]:
                        dl_dinput[i * 2 + i2, j * 2 + j2, f2] = dl_dout[i, j, f2]
    return dl_dinput

For each pixel in each 2x2 image region in each filter, we copy the gradient from dl_dout to dl_dinput if it was the max value during the forward pass.

3.1.9 Backprop: Conv

We’re finally here: backpropagating through a Conv layer is the core of training a CNN.

We’re primarily interested in the loss gradient for the filters in our conv layer, since we need that to update our filter weights. We already have \(\frac{\partial L}{\partial out}\) or the conv layer, so we just need \(\frac{\partial out}{\partial filters}\). To calculate that, we ask ourselves this: how would changing a filter’s weight affect the conv layer’s output?

The reality is that changing any filter weights would affect the entire output image for that filter, since every output pixel uses every pixel weight during convolution. To make this even easier to think about, let’s just think about one output pixel at a time: how would modifying a filter change the output of one specific output pixel?

Here’s a super simple example to help think about this question:

Figure 17 - Produce a \(1 \times 1\) Output

We have a \(3 \times 3\) image convolved with a \(3 \times 3\) filter of all zeros to produce a \(1 \times 1\) output. What if we increased the center filter weight by 1? The output would increase by the center image value 80:

Figure 18 - Increase Center Filter Weight by 1

Similarly, increasing any of the other filter weights by 1 would increase the output by the value of the corresponding image pixel! This suggests that the derivative of a specific output pixel with respect to a specific filter weight is just the corresponding image pixel value. Doing the math confirms this:

We can put it all together to find the loss gradient for specific filter weights:

We’re ready to implement backprop for our conv layer:

class Conv3x3:
    # ...
    def backprop(self, dl_dout, learn_rate):
        '''
        Performs a backward pass of the conv layer.
        - dl_dout is the loss gradient for this layer's outputs.
        - learn_rate is a float.
        '''
        dl_dfilters = numpy.zeros(self.filters.shape)
        for im_region, i, j in self.iterate_regions(self.last_input):
            for f in range(self.num_filters):
                dl_dfilters[f] += im_region * dl_dout[i, j, f]

        # Update filters.
        self.filters -= learn_rate * dl_dfilters

        # We aren't returning anything here since we use Conv3x3 as
        # the first layer in our CNN. Otherwise, we'd need to return
        # the loss gradient for this layer's inputs, just like every
        # other layer in our CNN.
        return None

We apply our derived equation by iterating over every image region / filter and incrementally building the loss gradients. Once we’ve covered everything, we update self.filters using SGD just as before.

With that, we’re done! We’ve implemented a full backward pass through our CNN. Time to test it out...

3.1.10 Training a CNN

We’ll train our CNN for a few epochs, track its progress during training, and then test it on a separate test set. Here’s the full code:

# Train the model.
loss = 0
num_correct = 0

for epoch in range(10):
    print('Epoch ' + str(epoch + 1))

    for i, (image, label) in enumerate(zip(x_train[:5000], y_train[:5000])):
        if (i + 1) % 500 == 0:
            print('Step ' + str(i + 1) + ': loss = ' + str(round(loss / 500, 4)) +
                ', accuracy = ' + str(num_correct / 500))
            loss = 0
            num_correct = 0

        l, acc = train(image, label)
        loss += l
        num_correct += acc

# Test the model.
loss = 0
num_correct = 0
for i, (image, label) in enumerate(zip(x_test[:400], y_test[:400])):
    _, l, acc = forward(image, label)
    loss += l
    num_correct += acc

print('Test loss:', round(loss / 400, 4))
print('Test accuracy:', num_correct / 400)

Example output from running the code:

Epoch 1
Step 100: loss = 2.2685, accuracy = 0.14
Step 200: loss = 2.2279, accuracy = 0.22
Step 300: loss = 2.1314, accuracy = 0.36
Step 400: loss = 1.9805, accuracy = 0.51
Step 500: loss = 1.8408, accuracy = 0.47
...
Step 4500: loss = 0.1929, accuracy = 0.948
Step 5000: loss = 0.1723, accuracy = 0.956
Epoch 10
Step 500: loss = 0.1845, accuracy = 0.948
Step 1000: loss = 0.2391, accuracy = 0.928
Step 1500: loss = 0.2536, accuracy = 0.938
Step 2000: loss = 0.1368, accuracy = 0.962
Step 2500: loss = 0.1488, accuracy = 0.952
Step 3000: loss = 0.1878, accuracy = 0.952
Step 3500: loss = 0.1767, accuracy = 0.952
Step 4000: loss = 0.1863, accuracy = 0.948
Step 4500: loss = 0.1864, accuracy = 0.952
Step 5000: loss = 0.1702, accuracy = 0.956
Test loss: 0.2451
Test accuracy: 0.9325

3.1.11 What Now?

We’re done! We did a full walkthrough of Convolutional Neural Networks, including what they are, how they work, why they’re useful, and how to train them. This is just the beginning, though. There’s a lot more you could do:

• Excecise: rewrite the above process using PyTorch.

• Read about the ImageNet project and its famous Computer Vision contest, the ImageNet Large Scale Visual Recognition Challenge (ILSVRC).

• Read about AlexNet, the first CNN to win the ILSVRC contest.

• Read about ResNet, which introduced skip connections to allow for even deeper CNNs.

Thanking for reading!
